Horizontal Vacuum Belt Filter Working Principle, Applications, and Future Prospects

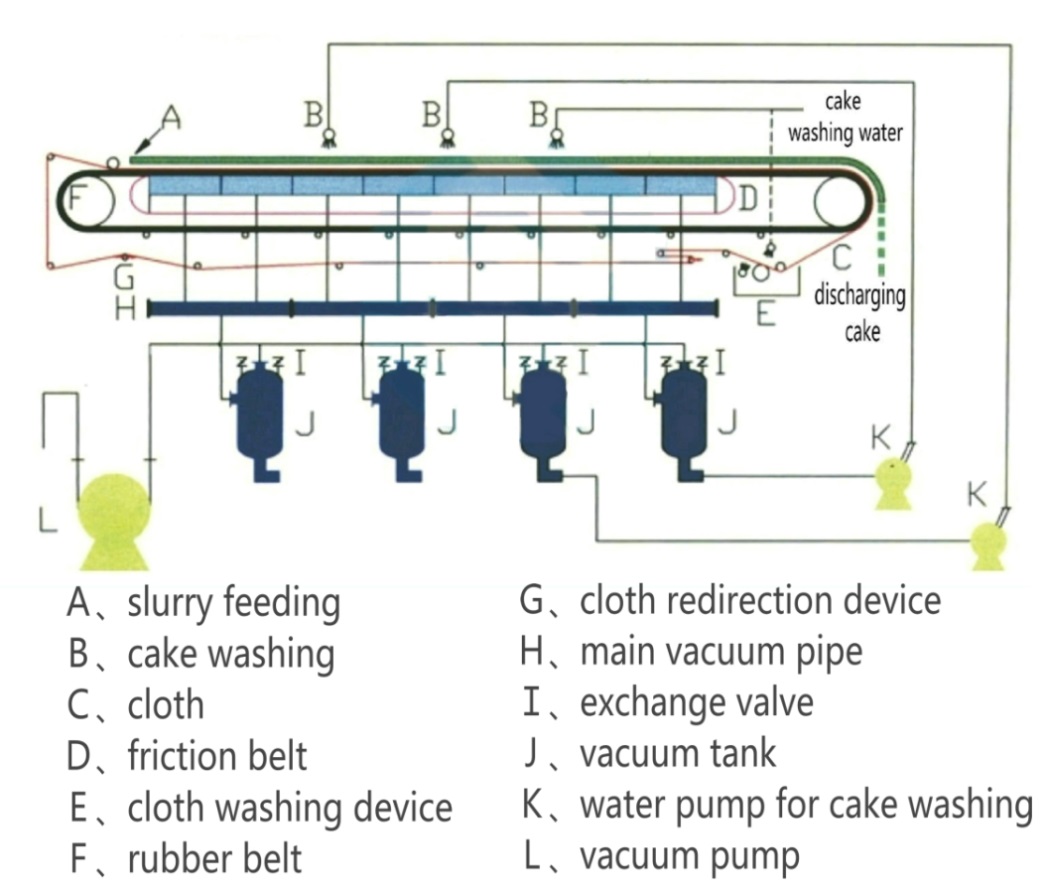

Horizontal Vacuum Belt Filter Working Principle

In mining, chemical processing, power plant flue gas desulfurization (FGD), and lithium battery material production, efficient solid-liquid separation directly impacts output, costs, and product purity. The Horizontal Vacuum Belt Filter (HVBF) stands out for its continuous operation, superior multi-stage cake washing, and low moisture filter cake.

As a leading manufacturer, Hesheng has delivered hundreds of DU-series horizontal vacuum belt filters worldwide. We explain the working principle of horizontal vacuum belt filters, explore their industrial applications, and future prospects of this advanced filtration technology.

Vacuum Negative Pressure Principle

Horizontal vacuum belt filter working principle is that under the action of vacuum negative pressure (0.04-0.07 MPa), the liquid in the suspension passes through the filtration medium (filter cloth) and is drawn away, while the solid particles are retained by the medium, thus achieving the separation of liquids and solids.

Role of Filtration Medium

Horizontal vacuum belt filter working principle applies surface filtration mechanisms. When the liquid from the suspension flows towards the filtration medium, solid particles larger than or close to the size of the filtration medium’s pores will initially form a layer on the surface of the medium in a bridging manner. Since the pores of the filtration medium are larger than the pore channels, this retains smaller particles.

Formation and Accumulation of Filter Cake

As the filtration process continues, the solid particles that continuously deposit will gradually form a filter cake with a certain thickness on the initial deposition layer. This process will affect the filtration speed and efficiency.

Negative Pressure Driven Filtration Process

The horizontal vacuum filter creates negative pressure at the filtrate outlet as the driving force for filtration. This negative pressure driving method effectively promotes the liquid’s passage through the filtration medium, while retaining the solid particles.

Batch and Continuous Operation Modes

The horizontal vacuum belt filter is available in two operation modes: batch operation and continuous operation. Batch operation is suitable for filtering suspensions of various concentrations, while continuous operation is suited for suspensions containing more solid particles.

Main Structural Components of Horizontal Vacuum Belt Filter

A horizontal vacuum belt filter typically includes:

• Rubber drainage belt

• Filter cloth

• Vacuum box system

• Distribution head

• Drive and tension system

• Cake washing system

• Cloth washing system

• Control system

Each component plays a critical role in maintaining continuous and stable operation.

Applications of Horizontal Vacuum Belt Filter

The vacuum belt filter is a highly automated, new type of filtration equipment. It is widely used in industries such as thermal power, chemicals, pharmaceuticals, papermaking, building materials, metallurgy, rubber, and food.

Future Prospects of Horizontal Vacuum Belt Filter

Developing new types of filtration equipment include mechanical pressure squeezing filters, dynamic filters capable of achieving filtration without a filter cake layer, and large-scale filtration equipment used for washing coal wastewater treatment, chemicals, and petroleum industries.

In terms of filtration theory research, important topics include the calculation of filter cake resistance and porosity, filtration speed, simulation and scaling of filtration equipment, clarification filtration of thin liquids, dynamic filtration mechanisms, and studies on filtration media. The use of electronic computers to control filtration operations is the direction for the future development of filtration equipment.

How to Select the Right Horizontal Vacuum Belt Filter

When selecting equipment, consider:

• Slurry concentration

• Particle size distribution

• Required final moisture content

• Required washing stages

• Processing capacity (t/h)

• Installation space

Proper parameter evaluation ensures optimal filtration efficiency and long-term operational stability.

FAQs

What is the horizontal vacuum belt filter working principle? It uses continuous vacuum suction through a moving filter cloth on a rubber belt to form, wash, and dewater filter cake in one pass.

What industries use horizontal vacuum belt filters?

They are widely used in mining, chemical processing, power generation, and wastewater treatment industries.

What is the typical moisture content after filtration?

Depending on material properties and operating parameters, final cake moisture typically ranges between 10%–25%.

How does cake washing improve product purity?

Multi-stage washing removes soluble impurities trapped in the cake, improving product quality.

How many washing stages can an HVBF have? Hesheng DU units support 2–5 stages of counter-current washing with >99.8% efficiency.
